Ultra-Fast Charging Station
The Ultra-Fast Charging Station is a charging facility specially designed for electric vehicles with extremely high charging power and fast charging speeds. Compared to a conventional charging station, an ultra-fast charging station is able to charge an electric vehicle’s battery with a large amount of power in a short period of time. For example, whereas a conventional charging station may take several hours to fully charge an electric vehicle, an ultra-fast charging station may take only 20-30 minutes or even less to provide an electric vehicle with enough power to travel a longer distance.
Such charging stations typically use advanced charging technologies and high-powered charging equipment capable of delivering hundreds of kilowatts or more. Their existence greatly improves the convenience of using electric vehicles and reduces the inconvenience caused by long charging time, which is of great significance in promoting the popularity and development of electric vehicles.
Benefits of Ultra-Fast Charging Stations
Reduced Charging Time: Capable of delivering a significant amount of energy to an EV battery in a short time span, typically allowing for a 0-80% charge in around 20-30 minutes depending on the vehicle and charger capabilities.
Enhanced Convenience: Enables quick stops for charging during long journeys, similar to refueling at a traditional gas station.
Support for Long-Distance Travel: Facilitates intercity travel for electric vehicles by reducing the time spent on charging breaks.
Future-Proof Infrastructure: Designed to accommodate future advancements in battery technology and EV charging standards, ensuring longevity and relevance.
Components of an Ultra-Fast Charging Station

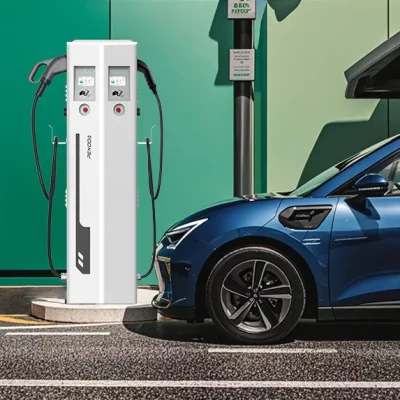

High-Power Chargers:
● DC Fast Chargers: Capable of delivering high power (typically 150 kW to 350 kW or higher) directly to the EV battery.
● Multiple Charging Points: Stations often have several charging points to accommodate simultaneous charging of multiple vehicles.

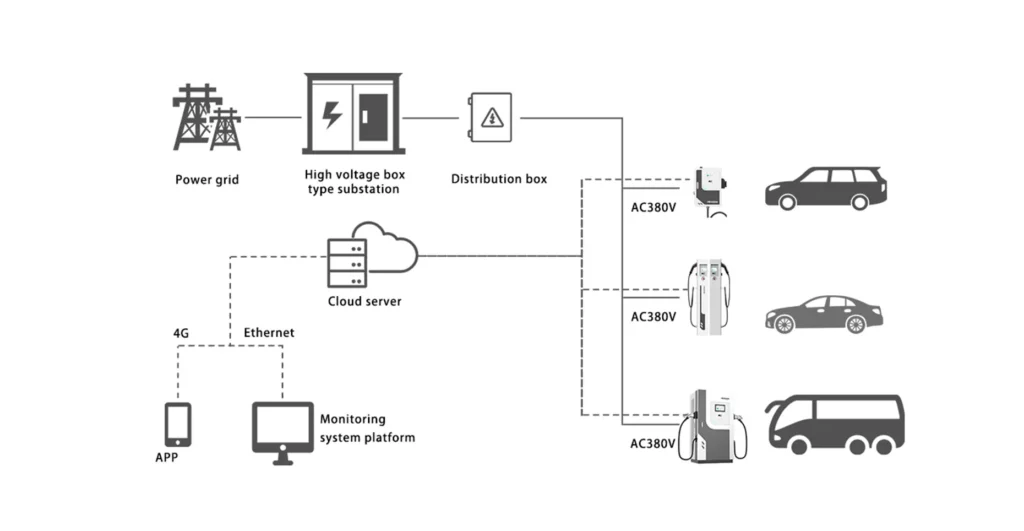

Power Supply and Distribution:
● Grid Connection: Direct connection to the electrical grid with high-capacity transformers and switchgear to handle the high power demand.
● Energy Management System: Monitors grid conditions and manages power distribution to optimize charging efficiency and grid stability.
Cooling and Safety Features:
● Liquid Cooling: Ensures that the charging cables, connectors, and internal components remain within safe temperature ranges during high-power charging sessions, thereby optimizing efficiency and longevity.
● Safety Protocols: Includes robust safety mechanisms such as automatic shut-off in case of emergencies, ground fault protection, and continuous monitoring of charging parameters to prevent overheating or overcharging.
User Interface and Convenience:
● Touchscreen Displays: Provide users with intuitive interfaces to initiate and monitor the charging process, check charging status, and view charging rates.
● Mobile App Integration: Allows EV owners to locate nearby UFCS stations, reserve charging slots, and receive notifications when charging is complete.
Accessibility and Compatibility:
● Connector Types: Supports various charging standards such as CCS (Combined Charging System), CHAdeMO, and Tesla Supercharger, ensuring compatibility with a wide range of electric vehicles.
● Universal Access: Typically accessible 24/7 with payment options including credit/debit cards, mobile payments, and RFID cards for seamless user experience.
Location and Deployment:
● Strategic Placement: Positioned along major highways, urban centers, and high-traffic areas to cater to long-distance travelers and densely populated regions.
● Network Integration: Part of a broader network of charging stations that enable EV drivers to plan longer journeys with confidence, reducing range anxiety.
Future Trends and Developments
Increased Power Output: Continued advancements in charger technology may lead to even higher power outputs, further reducing charging times.
Integration with Renewable Energy: Deployment of UFCS with solar or wind energy integration to reduce reliance on the grid and promote sustainable charging practices.
Expansion of Charging Networks: Continued expansion of UFCS networks globally, supported by government incentives and private investments, to meet the growing demand for electric vehicles.
