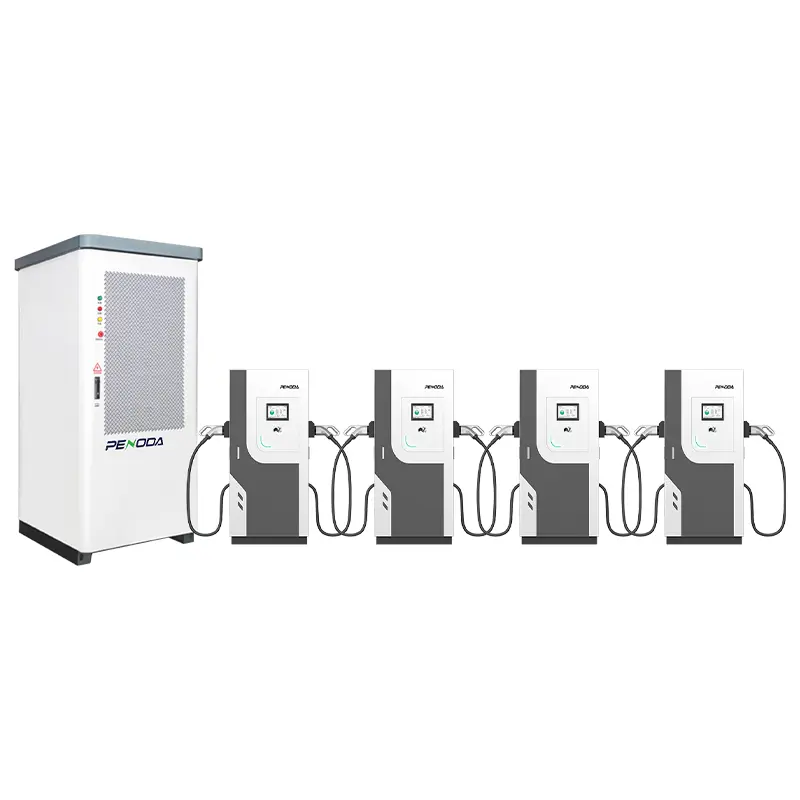

PDG-240kW/360kW/480kW/720kW Flexible Group Charging

DC Charger

▏ Description



The PDG-240kW/360kW/480kW/720kW Flexible Group Charging is a cutting-edge Super Charging Station enhanced with a Liquid Cooled EV Charging Cable, delivering exceptional speed, safety, and efficiency. Offering power outputs from 240kW to 720kW, it caters to various vehicle types and charging needs. The intelligent power distribution system automatically adjusts power to enable simultaneous charging of multiple vehicles, reducing wait times.

Its modular design ensures easy maintenance and future scalability. The liquid cooled cable technology effectively manages heat during high-power charging, boosting both performance and safety. Equipped with multiple safety features and OCPP protocol support for seamless remote monitoring and smart management, it provides a secure and efficient charging experience. Featuring a user-friendly interface with a high-definition touch screen, it simplifies operation. Ideal for public stations, large fleets, and highway service areas, the PDG series offers unmatched speed, flexibility, and reliability for modern electric mobility.

▏ Specification

 Feature
Charging mode:PDG
Charging connector:lEC 62196 CCS2 cable
DC power output: 120kw/180kw/240kw
HMI:Logo LED, Status LED
Load management:Via App

General Design
Operating temperature :-30 to 55°C with derating mechanisme
Operating altitude :2000m
Environmental rating :Indoor and outdoor, lP55,lK10

Electrical Design                   Power supply:
AC380VAC+15%,50/60HzTN/TT/T Protection:UVP, OVP, OCP, Relay Stuck, Over Temperature
Energy metering :±2% Accuracy

Communication
Interface:WiFi/4G
User authentication:RFID, App, Plug and Charge Backend protoco:OCPP 1.6 JSON upgrade:OTA via App, OCPP

▏ Technical Parameters

  • Maximum Power

    240kw/600A 200-1000DC ; 360kw/900A 200-1000DC;480kW/1200A 200-1000DC

  • Connector

    CCS1/CCS2/GBT

  • Start Mode

    FRID,OCPP

  • Display

    LCD:7.0 inch touch screen

  • Installation

    Pedestal-mounted

  • Certification

    CE,FCC

  • Ingress Protection

    IP55,IK10

  • Dynamic Load Blancing

    Solar Charging

▏  FAQ: Addressing Common Queries



  • What is the PDG Flexible Group Charging system?
    The PDG Flexible Group Charging system is a high-capacity EV charging solution offering power outputs of 240kW, 360kW, 480kW, and 720kW. It is designed for various applications, including public charging stations, large fleets, and highway service areas, providing flexible and efficient charging for multiple vehicles simultaneously.

  • What power options are available with the PDG series?
    The PDG series offers four power options: 240kW, 360kW, 480kW, and 720kW, allowing you to choose the configuration that best meets your needs and scale up as required.

  • How does the intelligent power distribution system work?
    The intelligent power distribution system automatically adjusts the power output based on the charging status and requirements of each connected vehicle. This maximizes efficiency and minimizes the waiting time for vehicles.

  • Is the PDG system easy to maintain?
    Yes, the PDG system features a modular design, which simplifies maintenance and allows for easy replacement of parts, ensuring minimal downtime and quick serviceability.

  • What safety features are included in the PDG charging system?
    The PDG charging system incorporates multiple safety mechanisms, including overcurrent, overvoltage, short circuit protection, and temperature monitoring, to ensure a safe and reliable charging process.
