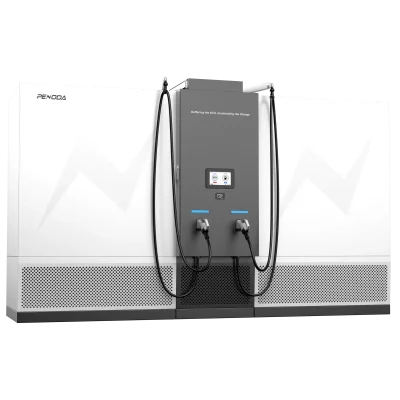

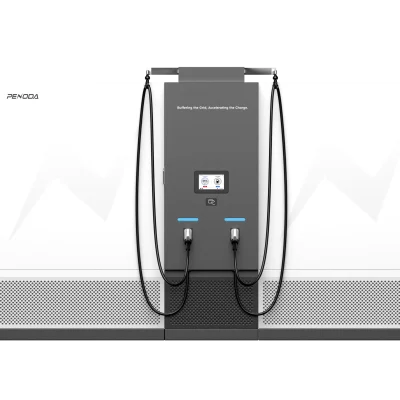

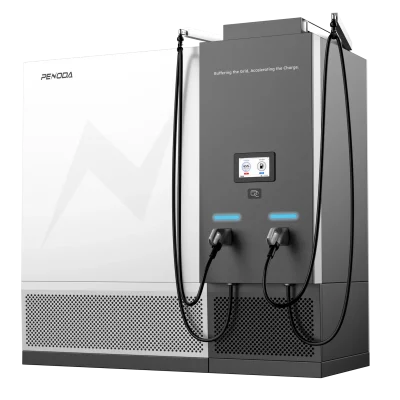

PD-X-215kWh PV+ESS+EV Charging System
DC Charger
- PV EV Charger
- CCS1/CCS2/GBT
- 4G/WIFI
- Fast Charge
- IP55 IK10
- E-stop Button
▏ Description
▏ Specification
Rated Capacity
Batterytype:Lithium iron phosphate
Cellcapacity:280Ah
Cellvoltage:3.2V
Ratedbatterycapacity: 215kWh
Ratedbatteryvoltage: 768.0V
Batteryvoltagerange: 636~864V
Chargeanddischargeratio: RatedO.5C
Batterycoolingsystem: Fan/Liquidcooling
Material
Housing Material: Galvanized steel with
anti-corrosion painting
CableMaterial:TPU
Safety Protection
EnergyMeter:SmartMeter
ProtectionClass:IP54Impact
Protection:IK10
Warranty:2Years
Certification:CE
conventional parameter
Dimension(WxDxH): 1200*1280*2419mm
Weight:2400Kg
Class of protection:IP54
Anticorrosion grade:C5
Operating temperature range: -30~50℃
Storage temperature range: -30~55℃
System communication protocol: Ethernet/RS485/CAN
Communication interface:RJ45
▏ Technical Parameters
Maximum Power
30kW/60A 400VAC；40kW/80A 400VAC；60kW/120A 400VAC
Connector
CCS1/CCS2/GBT
Dimension (W*D*H)
1200*1280*2419mm
Display
LCD:10.0-inch touch
Installation
Pedestal-mounted
Certification
CE
Ingress Protection
IP54,IK10
Dynamic Load Blancing
Solar Charging
▏ FAQ: Addressing Common Queries
What is the PD-X-215kWh PV+ESS+EV Charging System?
The PD-X-215kWh PV+ESS+EV Charging System is an integrated energy solution combining 215kWh of energy storage, photovoltaic (PV) solar panels, and electric vehicle (EV) charging capabilities. It is designed to harness solar energy, store it for future use, and provide high-capacity charging for electric vehicles.How does the system work?
The system captures sunlight through PV solar panels, converts it into electricity, and stores this energy in a 215kWh energy storage system (ESS). This stored energy is then used to power the EV charging station, providing efficient and renewable energy for charging electric vehicles.What are the benefits of using this system?
The PD-X-215kWh system offers several benefits, including reduced reliance on the grid, lower energy costs, and enhanced sustainability by utilizing renewable solar energy. It also provides reliable and high-capacity charging for electric vehicles, making it a comprehensive solution for energy management and transportation needs.Can the system be installed both indoors and outdoors?
Yes, the PD-X-215kWh system is designed for flexibility in installation. It can be installed in both indoor and outdoor settings, depending on your specific needs and space requirements.What type of electric vehicles can be charged with this system?
The system supports a wide range of electric vehicles, including passenger cars, commercial vehicles, and buses. It provides high-capacity charging suitable for various EV types.
