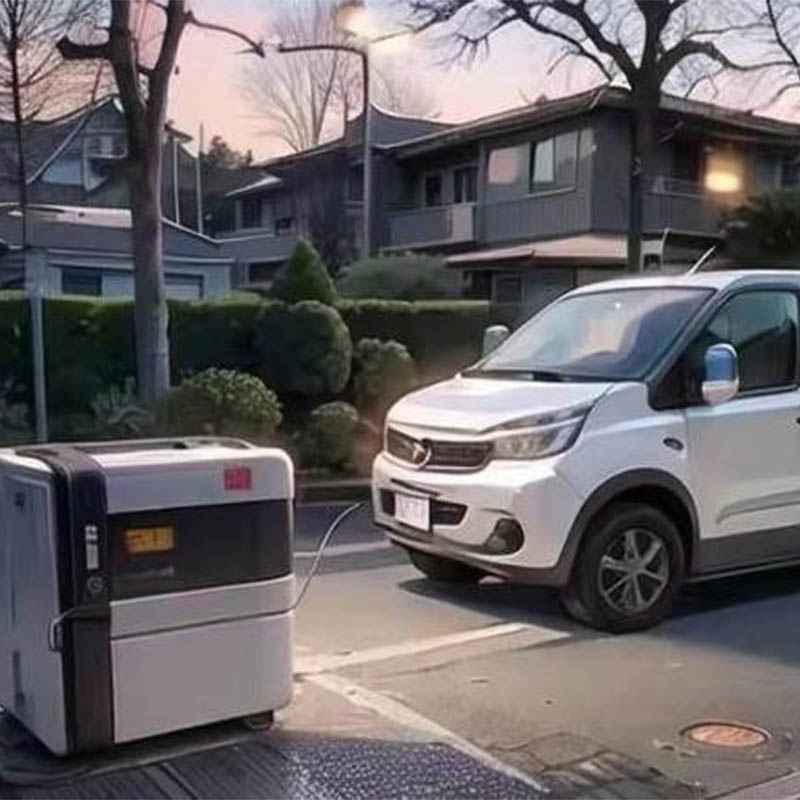

PBDC-65kWh-60kW Energy Storage EV Charging Station
Energy Storage EV Charger
- Energy Storage EV Charging Station
- portable ev charger battery
- 7-inch touch screen
- CCS1/CCS2/GBT/ChadeMO
- Single-Alone/OCPP1.6J
- Remote control driving
- liquid cooling
- IP54
▏ Description
PBDC-161-120 Energy Storage Charging Pile with Portable EV Charger Battery.The PBDC-161-120 energy storage charging pile is a high-performance EV charging solution featuring a robust 161kWh LifePO4 battery and a constant 120kW power output. It supports a voltage range of DC 200V to 750V and a maximum current of 250A, ensuring broad compatibility with various electric vehicles. The device includes a user-friendly 7-inch touchscreen and supports multiple charging standards (GBT, CCS1, CCS2, ChadeMO) with a 7-meter charging cable. Enhanced with advanced liquid cooling, it operates efficiently within -10℃ to 60℃ and boasts an IP54 rating for dust and water resistance. Designed for both EV charging stations and commercial applications, it offers the added benefit of a portable EV charger battery for added flexibility and convenience.
▏ Technical Parameters
● Product model:PBDC-65-60
● Energy storage capacity:65kWh LifePO4
● Output power:60kW
● Output voltage:DC200V~750V
● Output current:0~150 A.Man-machine
● interface:7-inch touch screen
● Charging gun:GBT (CCS1/CCS2/ChadeMO)
● Gun line length: 5m
● Operation mode: Single-Alone/OCPP1.6J
● System recharge:AC380V-20kW/ DC charging gun fast charge
● Cooling method: liquid cooling
● Product size:2030*920*1620mm
● Weight:<1000KG
● Working temperature:-10℃~60℃
● Protection grade: IP54
● Driving mode:Remote control driving
(Automatic driving module can be upgraded)
▏ FAQ: Addressing Common Queries
1. What is an energy storage charging post?
An energy storage charging pile is an electric vehicle charging device with an integrated energy storage system. It not only charges electric vehicles, but also stores power for use when the grid load is high or the cost of electricity is high.
2. How does an energy storage charging post work?
An Energy Storage Charging Post stores excess electricity in a built-in battery by connecting to the grid or an energy device such as a solar panel. When it is time to charge an electric vehicle, the energy storage system releases the stored electricity to provide a stable supply of power.
3. What are the advantages of energy storage charging posts?
Reduces electricity costs, reduces the load on the grid, improves charging efficiency, and supports renewable energy.
4. What scenarios are energy storage charging piles suitable for?
Energy storage charging piles are suitable for electric vehicle charging stations, company car parks, residential areas, shopping mall car parks, and other places that require a large number of charging services, especially in areas with unstable power supply or fluctuating electricity prices.
5. What are the prerequisites for installing an Energy Storage Charging Post?
The installation of an energy storage charging post requires a stable power supply infrastructure and sufficient installation space, as well as consideration of the ventilation and heat dissipation of the batteries. In addition, the installation needs to comply with local electrical and safety standards.
