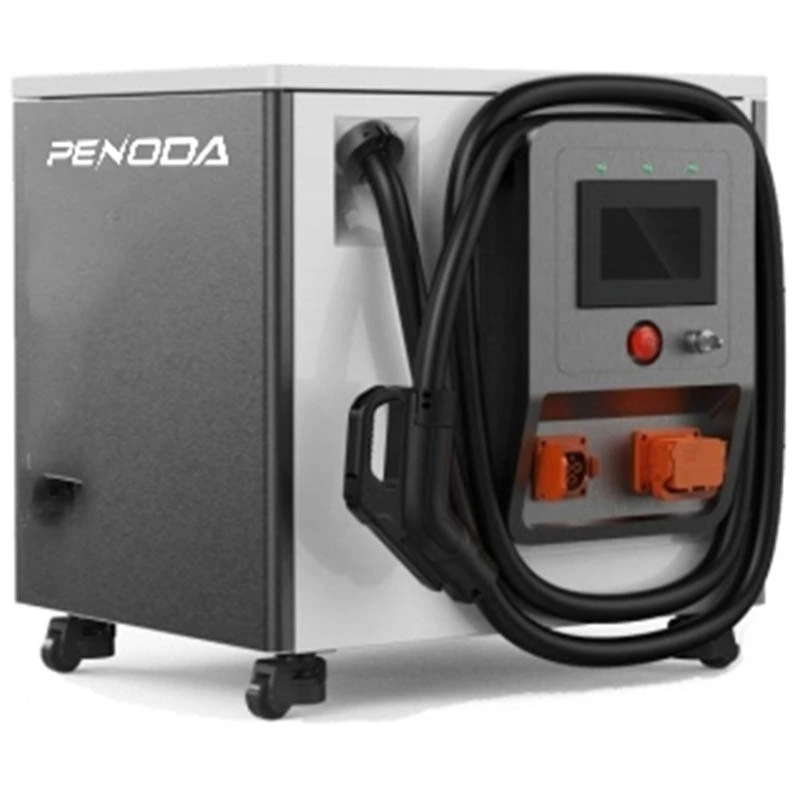

PBDW-11.5kWh-20kW Mobile Energy Storage Charging Pile
Energy Storage EV Charger
- Portable ev battery charger
- Energy Storage EV Charging Station
- Energy storage capacity: 11.5kWh LifePO4
- 7-inch touch screen
- Operation mode: Single-Alone
- CCS1/CCS2/GBT/ChadeMO
- Output current:0~50 A.Man-machine
- IP54
▏ Description
The PBDW-11.5-20 is a compact and efficient portable EV battery charger, ideal for roadside assistance. Featuring an 11.5kWh LifePO4 battery and 20kW constant output power, it supports a voltage range of DC 150V to 750V with up to 50A output current. The unit is equipped with a user-friendly 7-inch touchscreen and a GBT charging gun compatible with CCS1, CCS2, and ChadeMO standards, complete with a 5-meter cable for flexibility. Operating in standalone mode, it supports system recharge via a 3.3kW-7kW AC charging gun. With dimensions of 740mm x 465mm x 890mm, weighing 190kg, and designed to function within -10℃ to 60℃, the PBDW-11.5-20 features an IP54 rating for dust and water resistance, making it a reliable solution for providing portable charging power in emergency situations.
▏ Technical Parameters
● Product model:PBDW-11.5-20
● Energy storage capacity: 11.5kWh LifePO4
● Output power:20kW constant power
● Output voltage:DC150V~750V
● Output current:0~50 A.Man-machine
● Interface:7-inch touch screen
● Charging gun: GBT*1(CCS1/CCS2/ChadeMO)
● Gun line length:5m
● Operation mode: Single-Alone
● System recharge: 3.3kW-7kWAC charging gun
● Product size:740*465*890mm
● Weight: 190KG
● Working temperature: -10℃~60℃
● Protection grade: IP54
▏ FAQ: Addressing Common Queries
1. What is an energy storage charging post?
An energy storage charging pile is a type of electric vehicle charging equipment that has a built-in battery to store electrical energy and provide stable charging service. It can charge when the load on the grid is low, store the electricity and release it to charge electric vehicles when needed.
2. How does a storage charger work?
Energy storage chargers store electricity in a built-in battery. When the electric vehicle needs to be charged, the charging post releases electricity from the stored battery to charge it. It can also charge from the grid or other charging sources, ensuring that there is always enough power available.
3. What is the capacity of a storage charger?
The capacity of an energy storage charging post can vary depending on the model and design. Common capacities range from tens of kWh to hundreds of kWh to meet different energy storage and charging needs.
4. What is the compatibility of the charging interface of the storage charging post?
Energy storage charging piles usually support a variety of charging standards, such as GBT, CCS1, CCS2, ChadeMO and so on. Choosing a charging post that supports compatible interfaces ensures that it is suitable for a wide range of electric vehicles.
5. What is the battery life of a storage charger?
The battery life of a storage charger depends on usage and maintenance. Generally, LifePO4 batteries have a long life and high safety, but require regular inspection and maintenance to extend battery life.
