PAD-3.5kW Portable Electric Vehicle Charger
AC Charger
- Portable Electric Vehicle Charger
- Type 2/Type1/GBT

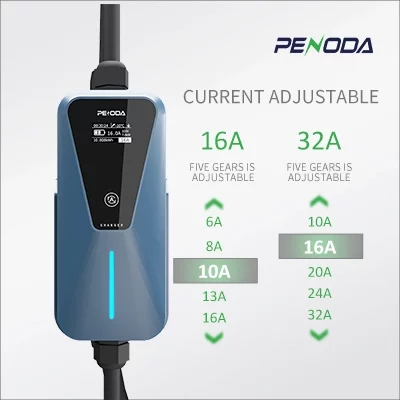

- Current Adjustable
- Touch Button
- IP67 IK10
▏ Description

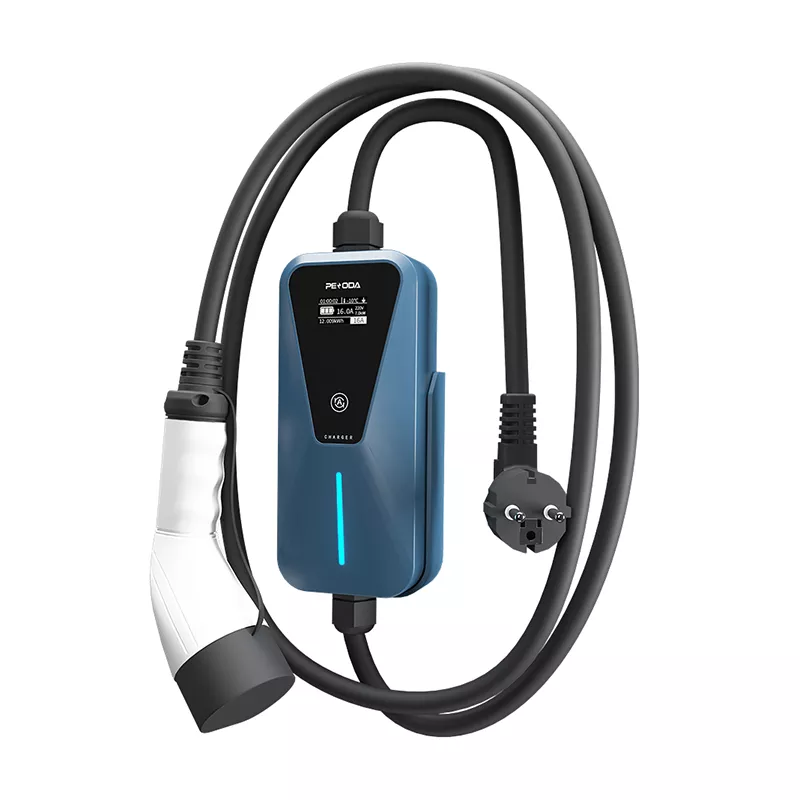

PAD-3.5kW Portable Electric Vehicle Charger is a compact and versatile solution designed for convenient daily charging of electric vehicles. With its portable design, 3.5 kW AC charging power, and compatibility with various EV models, it offers users a flexible and reliable option for charging at home, the office, or while traveling. Built-in safety features ensure a secure charging experience, making it an ideal companion for EV owners seeking convenience without compromising on performance or safety.
▏ Specification
Feature
Charging mode:PAD
Charging connector:lEC 62196 Type 2 cable /Type 1 cable
AC power output:230VAC ± 20%, 50/60Hz TN/TT/IT

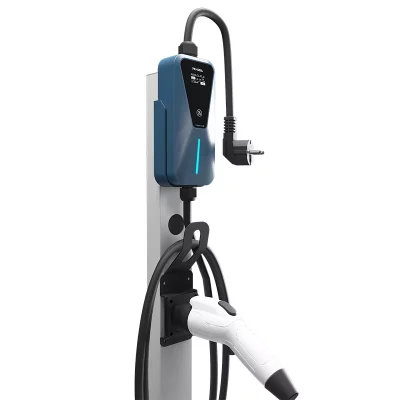

Mounting options:Wall mounted or pedestal
HMI:Logo LED, Status LED
Load management:Plug&Play
General Design
Operating temperature ：-30 to 55°C with derating mechanisme
Operating altitude ：2500m
Environmental rating ：Indoor and outdoor, lP65,lK10
Dimension：240*103*60 mm
Weight:3.8kg
Electrical Design Power supply:230VAC ± 20%, 50/60Hz
TN/TT/IT
Protection:UVP, OVP, OCP, Relay Stuck, Over Temperature
Energy metering :±2% Accuracy
Certification & Standards
IEC/EN 61851-1, IEC/EN 62955, IEC 61851-21-2
EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2, EN 61000-3-3
EN 61000-3-11, EN 61000-3-12
EN 300 328 V2.1.1, EN 300 330 V2.1.1
▏ Technical Parameters
Maximum Power
240kw/480A 400VAC±15%
Connector
Type2/Type1/GBT
Dimension (H*W*D)
240*103*60 mm
Display
LED 1.54″ touch
Installation
Portable/Wall-mount
Certification
CE
Ingress Protection
IP67,IK10
Dynamic Load Blancing
Solar Charging
▏ Product Showcase
AC30ma RCD swiftly detects abnormal currents, halting power supply to prevent electric shock incidents. Designed to international standards, our system ensures user safety and satisfaction.
▏ FAQ: Addressing Common Queries
1.Is there a portable charger for electric cars?
Yes, there are portable chargers available for electric cars. These portable chargers are designed to be lightweight, compact, and easy to transport, allowing electric vehicle (EV) owners to charge their vehicles in various locations, such as at home, work, or on the go.
2.Is there such a thing as a portable electric car charger?
Yes, there are portable electric car chargers available on the market. These chargers are typically smaller and more lightweight compared to standard home or public chargers. They are designed to be easily transported and used in various locations, providing convenience for electric vehicle (EV) owners who may need to charge their cars away from home.
3.Can I charge my EV with a portable power station?
while it is technically feasible to charge an EV with a portable power station, it may not be as fast or convenient as using dedicated EV charging infrastructure. Portable power stations are more suitable for emergency situations, off-grid charging needs, or as a backup option rather than regular EV charging. Always check the specifications of both your EV and the portable power station to ensure compatibility and safety.
4.How long does it take to charge an electric car with a portable charger?
