PAM-7.4/11/22kW EV Charger
AC Charger
- OCPP EV Charger
- OCPP1.6J+APP

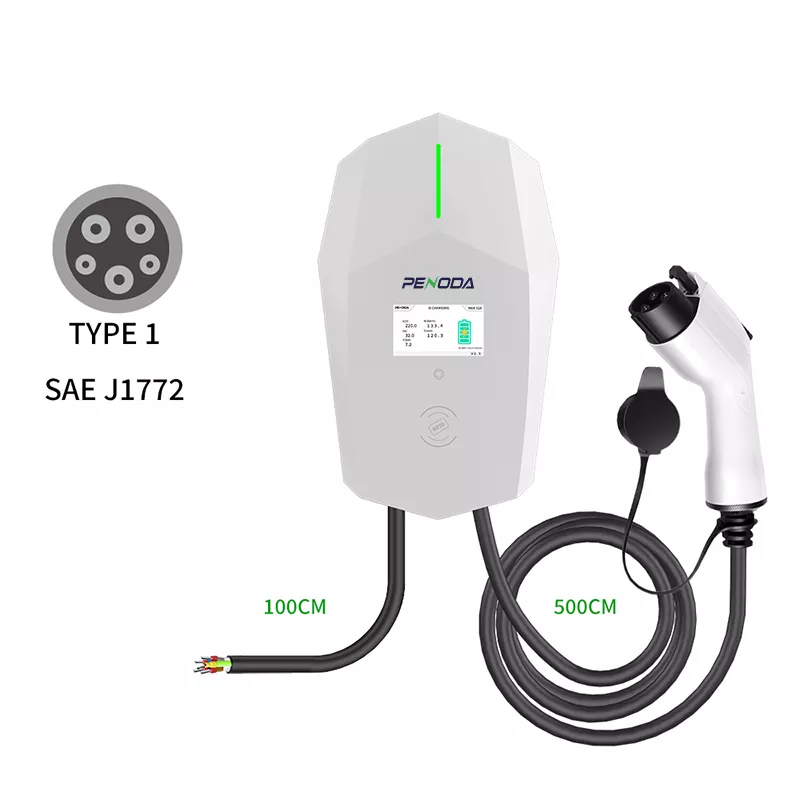

- Type 2/Type1/GBT
- Dynamic Load Balancing
- RFID
- 4G/WIFI/LAN Por
- Touch Button
- IP65 IK10
- E-stop Button
- PEN Fault Protection
▏ Description
The PAM-7.4/11/22kW OCPP EV Charger is a versatile electric vehicle charging station that combines flexibility in charging speeds, robust connectivity options through OCPP, and compliance with industry standards to provide reliable and efficient electric vehicle charging solutions for various applications. It supports multiple charging capacities: 7.4 kW, 11 kW, and 22 kW, catering to different charging needs from residential settings to commercial and public locations. Its compatibility with the Open Charge Point Protocol (OCPP) enables seamless integration with central management systems, allowing for remote monitoring, management, and billing. This makes it suitable for networked charging infrastructure, ensuring ease of operation and scalability as demand for electric vehicle charging grows. Overall, the PAM-7.4/11/22kW OCPP EV Charger stands out for its versatility, connectivity features, and adherence to safety standards, making it a reliable choice for EV charging deployments across diverse environments.
▏ Specification
Feature
Charging mode:PAM
Charging connector:lEC 62196 Type 2 cable
AC power output:Single phase up to 7.4kW. Three phase up to 22kW with downgrade compatibility

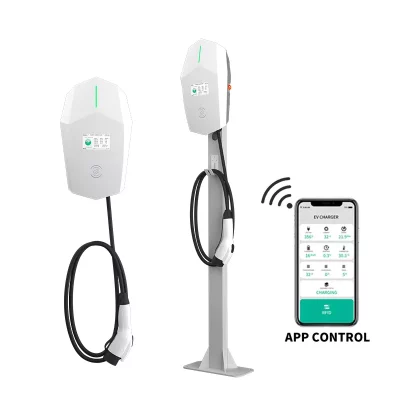

Mounting options:Wall mounted or pedestal
HMI:Logo LED, Status LED
Load management:Via App
General Design
Operating temperature ：-30 to 55°C with derating mechanisme
Operating altitude ：2500m
Environmental rating ：Indoor and outdoor, lP65,lK10

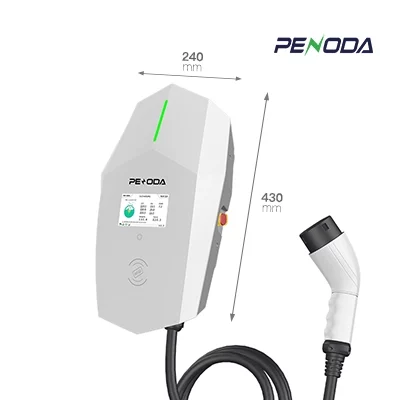

Dimension: 438*260*133 mm
Weight:6.5/7/9 kg
Electrical Design Power supply:230VAC ± 20%, 50/60Hz or
230/400VAC±20%,50/60HzTN/TT/T Protection:UVP, OVP, OCP, Relay Stuck, Over Temperature
Residual current protection：Type A + 6mA d&, per lEC 62955
Energy metering :±2% Accuracy
Communication
Interface:WiFi/4G/Ethernet
User authentication:RFID, App, Plug and Charge Backend protoco:OCPP 1.6 JSON Software upgrade:OTA via App, OCPP
▏ Technical Parameters
Maximum Power
7.4kw/32A 230VAC ; 11kw/16A 400VAC；22kW/32A 400VAC
Connector

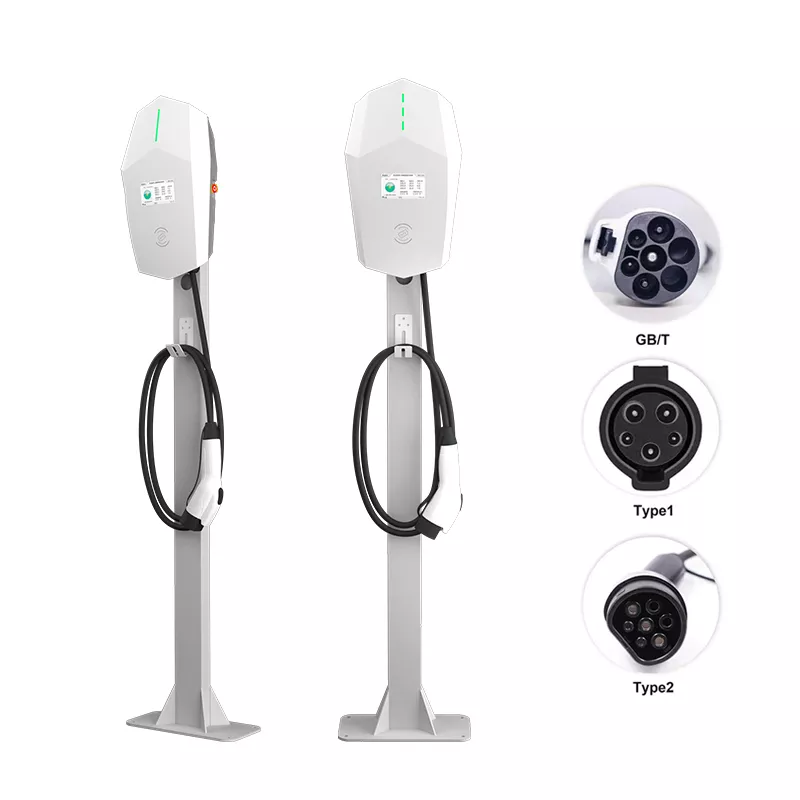

Type 2/GBT
Dimension (H*W*D)
438*260*133 mm
Display
LED 4.3″
Installation
Wall-mount
Certification
CE
Ingress Protection
IP65,IK10
Dynamic Load Blancing
Solar Charging
▏ Product Showcase

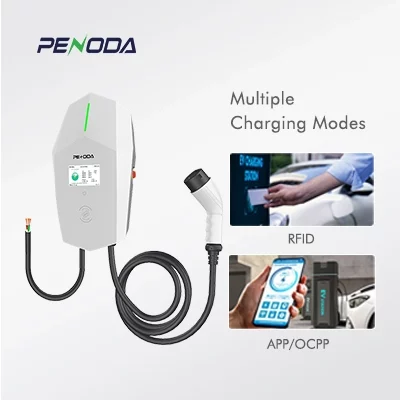

Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and dual 7.5/11/22kw outputs, our charging station offers a seamless EV charging experience.
Safety Instructions for Charging Stations
Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
▏ FAQ: Addressing Common Queries
1.What is OCPP in EV charger?
OCPP stands for Open Charge Point Protocol. It is an open communication protocol that standardizes the way electric vehicle (EV) charging stations or points communicate with central management systems (CMS) or backend servers.
2.What is the OCPP charge protocol?
The OCPP (Open Charge Point Protocol) charge protocol refers to the specific set of rules and messages defined by OCPP that govern the communication between electric vehicle (EV) charging stations (also known as charge points) and central management systems (CMS) or backend servers.
3.Is Tesla an OCPP?
As of my last update, Tesla does not directly support the OCPP (Open Charge Point Protocol) standard in its charging infrastructure. Tesla has developed its proprietary charging protocol and network, which includes the Supercharger network and Tesla Wall Connectors.
4.Is ChargePoint OCPP-compliant?
Yes, ChargePoint is OCPP-compliant. ChargePoint offers a range of electric vehicle charging solutions, including both hardware and software management systems that support the Open Charge Point Protocol (OCPP). This compliance allows ChargePoint charging stations to communicate with various central management systems (CMS) or backend servers that also adhere to the OCPP standard.
5.What safety certifications does the AC EV Charger comply with?
The EV Charger station adheres to stringent industry standards and certifications, including CE, IEC, and EN certifications such as EN IEC 61851-1:2019, EN IEC 61000-6-1:2019, and EN IEC 61000-6-3:2021, ensuring reliable and safe operation.
