PDA-21kW DC level 2 ev charging station
Dc Charger
- level 2 ev charging station
- 21kW Single Phase DC EV Charger
- Home Charging in the North American Market
- OCPP1.6J+APP
- CCS1/GBT
- RFID
- 4G/WIFI
- Fast Charge
- IP55 IK10
- E-stop Button
▏ Description
The PDA-21kW DC charger is a robust and efficient electric vehicle (EV) charging station designed to provide fast and reliable charging solutions. It operates on direct current (DC) and is categorized under Level 2 charging infrastructure, making it suitable for both residential and commercial applications. This charger offers a significant upgrade over Level 1 chargers in terms of charging speed and is particularly beneficial for EV owners looking to minimize charging times while maximizing convenience.
Key features of the PDA-21kW DC charger include its high power output of 21 kW, which allows for quicker replenishment of EV batteries compared to lower-powered chargers. It supports single-phase operation, which is typical for Level 2 chargers, and is compatible with various EV models equipped with DC fast charging capabilities. This compatibility ensures that a wide range of electric vehicles can utilize the charger efficiently.

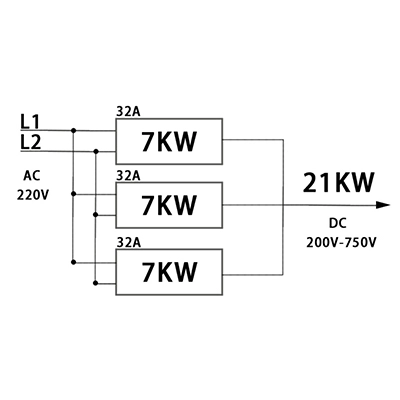

In order to be the best level 2 ev charger for home, we use 3*7kW DC modules in parallel for a 21kW DC charging station, and 4* 7kW DC modules in parallel for a 28kW DC charging station.
▏ Charging Time Calculation Example
Here, we will take the popular electric vehicle model in the North American Market, the Mach-E ER AWD, as an example.
The car has a battery capacity of 98.7 kWh and a range of about 260 miles. Using a 21 kW charging station with an input of 96A, the station can maintain an output of 21 kW. Assuming the electric car is fully depleted, it can be charged to 100% in about 4-5 hours. On average, it can charge 21% per hour, or 54 miles of range per hour. If the current is switched to 32A, it can charge 7% per hour, or 18 miles of range per hour. If the current is switched to 64A, it can charge 14% per hour, or 36 miles of range per hour.
▏ Conclusion
This fastest single phase ev charger will solve the problem of not having a Level 3 power source but wanting to install a DC fast charging station for most homes. In homes with a total capacity of 100A, we recommend a 21 kW DC charging station. In addition, we can introduce 14 kW DC charging stations to the North American Market. For households with a total capacity of 200A, we recommend a 28 kW DC charging station.In addition, the 21 kW charging station has a 60A gun line and the 28 kW charging station has an 80A gun line. Compared to the 100A cables on the market, it is thinner and lighter, more convenient for women, and the cost can be better controlled. In many ways it is the best home ev charger.

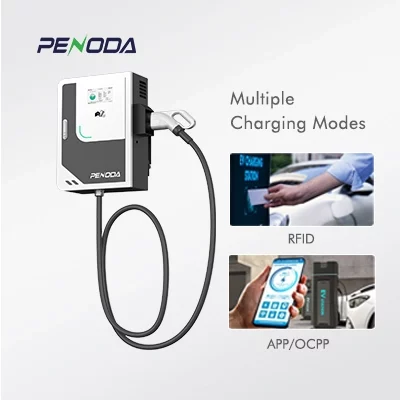

▏ Product Showcase
Feature
Charging mode:PDA-21kw
Charging connector:lEC 62196 Type 2 cable
DC power output:21kw
Mounting options:Wall mounted or pedestal
HMI:Logo LED, Status LED
Load management:Via App
General Design
Operating temperature ：-30 to 55°C with derating mechanisme
Operating altitude ：2500m
Environmental rating ：Indoor and outdoor, lP55,lK10
Dimension：450*150*650 mm
Weight:62kg
Electrical Design Power supply:230/400VAC ± 20%, 50/60Hz TN/TT/IT
Protection:UVP, OVP, OCP, Relay Stuck, Over Temperature
Energy metering :±2% Accuracy
Communication
Interface:WiFi/4G/Ethernet
User authentication:RFID, App, Plug and Charge Backend protoco:OCPP 1.6 JSON upgrade:OTA via App, OCPP
▏ Technical Parameters
Maximum Power
21kw/42A 400VAC±15%
Connector
CCS1/CCS2/GBT
Dimension (H*W*D)
450*150*650 mm
Display
LED 7″
Installation
Wall-mount
Certification
CE
Ingress Protection
IP55,IK10
Dynamic Load Blancing
Solar Charging
▏ Product Showcase
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and 21kw outputs, our charging station offers a seamless EV charging experience.

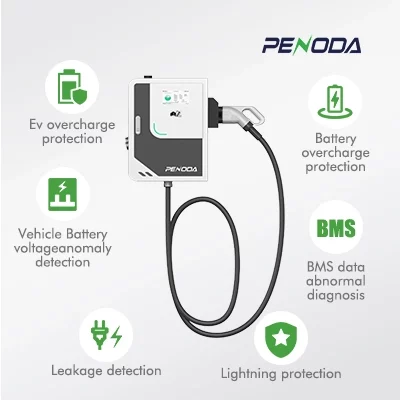

Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
