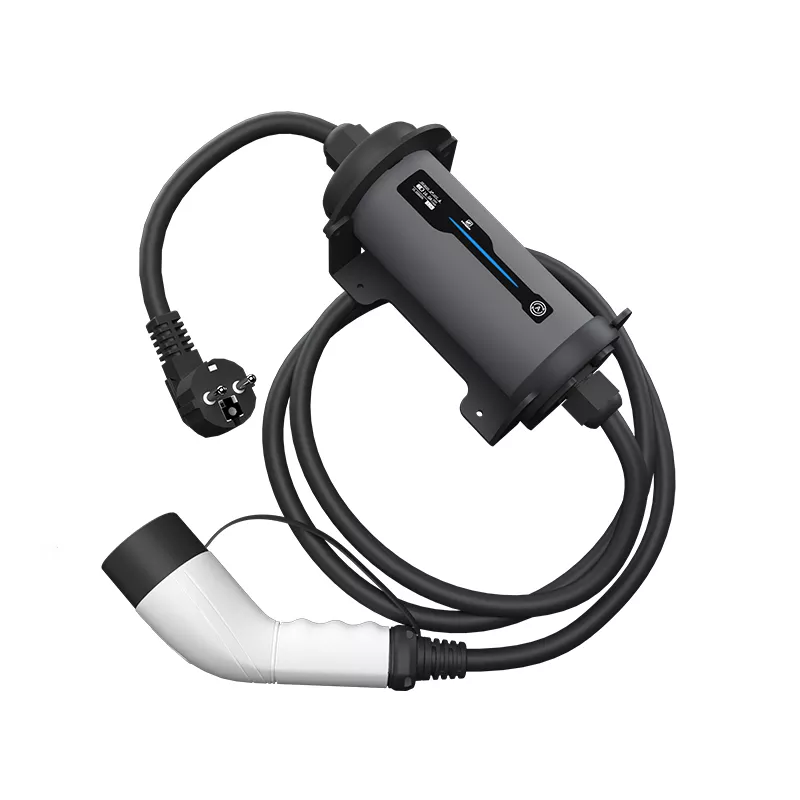

PAG-A-22KW EV With 22KW AC Charging
AC EV Charger
- EV With 22KW AC Charging
- Changeable Power Plug
- Type 2/GBT
- Current Adjustable
- Touch Button
- IP65 IK10
▏ Description
▏ Specifications
Feature
Charging mode:PAG-A
Charging connector:lEC 62196 Type 2 cable
AC power output:Single phase up to 7.4kW. Three phase up to 22kW with downgrade compatibility
Mounting options:Wall mounted or pedestal
HMI:Logo LED, Status LED
Load management:Plug&Play
General Design
Operating temperature ：-30 to 55°C with derating mechanisme
Operating altitude ：2500m
Environmental rating ：Indoor and outdoor, lP67,lK10
Dimension：260x80x80 mm
Electrical Design Power supply:
230VAC+20%,50/60Hz;230/400VAC+20%,50/60HzTN/TT/T Protection:UVP, OVP, OCP, Relay Stuck, Over Temperature
Residual current protection：Type A + 6mA d&, per lEC 62955
Energy metering :±2% Accuracy
Certification & Standards
IEC/EN 61851-1, IEC/EN 62955, IEC 61851-21-2
EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2, EN 61000-3-3
EN 61000-3-11, EN 61000-3-12
EN 300 328 V2.1.1, EN 300 330 V2.1.1
▏ Technical Parameters
Maximum Power
22kW/32A 400VAC±15%
Connector
Type 2/GBT
Dimension (H*W*D)
260*80*80 mm
Display
OLED 0.96″
Installation
Portable/Wall-mount
Certification
CE
Ingress Protection
IP67,IK10
Dynamic Load Blancing
Solar Charging
▏ Product Showcase

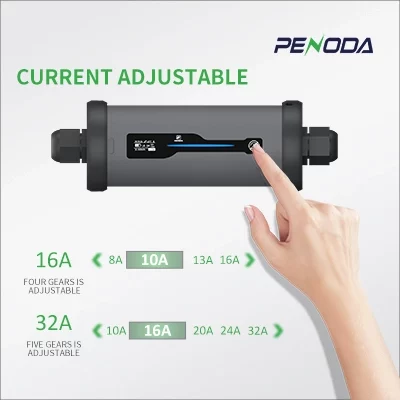

Long press the touch button to adjust the charging station’s rated current, ranging from 6A to 32A, offering multiple levels to match your grid usage, ensuring enhanced safety.
Scheduled charging function allows you to adjust the charging start time via button, enabling charging during off-peak electricity hours for a more environmentally friendly approach

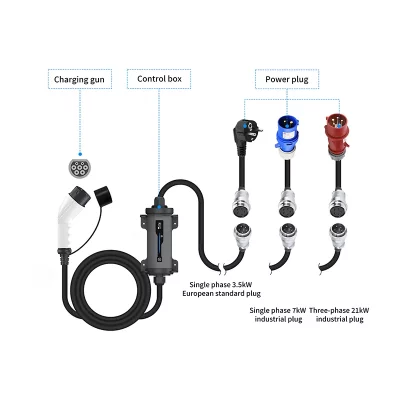

The charging station is equipped with three power sockets: CEE 7/7 Type E, CEE Blue 32A, and CEE Red 32A, catering to diverse usage scenarios.
▏ FAQ: Addressing Common Queries
1.What EVs can charge at 22kW AC ?
2.Can Tesla charge at 22kW AC?
No, Tesla vehicles cannot charge at 22 kW AC directly from AC charging stations. Tesla’s onboard chargers are typically designed to handle up to 11 kW of AC charging power, which is suitable for the Type 2 connectors commonly found in Europe and other regions.
3.Can I have 22kW car charger at home?
While it is technically feasible to install a 22 kW car charger at home, it requires careful planning, assessment of your home’s electrical capacity, and consideration of costs and practicality based on your specific EV charging needs. Consulting with a qualified electrician or EV charging installer is crucial to ensure a safe and efficient installation process.
4.Can a 7kW car use a 22kW charger?
While a 7 kW-capable EV can use a 22 kW charger, it will charge at its maximum rate of 7 kW. The higher capacity of the charger provides flexibility for charging a variety of EVs and supports future EV models that may have faster onboard charging capabilities.
5.What safety certifications does the AC EV Charger comply with?
The EV Charger station adheres to stringent industry standards and certifications, including CE, IEC, and EN certifications such as EN IEC 61851-1:2019, EN IEC 61000-6-1:2019, and EN IEC 61000-6-3:2021, ensuring reliable and safe operation.
