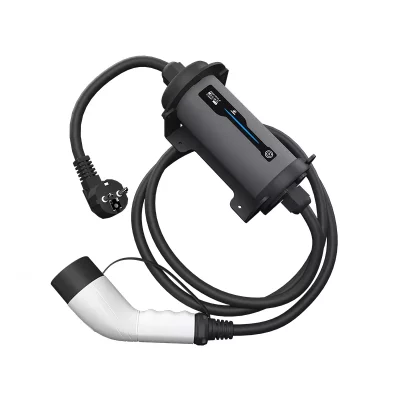

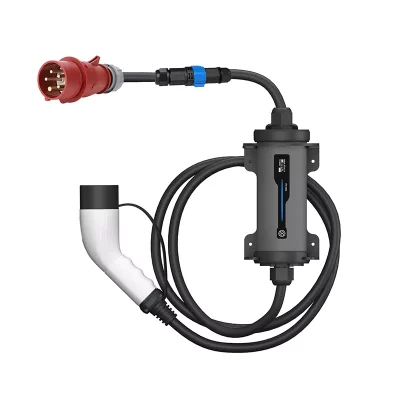

PAG-7.4/11/22kW EV Portable Charger
AC EV Charger
- EV Portable Charger
- EV Charging Station For Home
- Type 2/Type1/GBT
- Current Adjustable
- Touch Button
- IP65 IK10
▏ Description
▏ Specifications
Feature
Charging mode:PAG
Charging connector:lEC 62196 Type 2 cable/Type 1 cable
AC power output:Single phase up to 7.4kW. Three phase up to 22kW with downgrade compatibility
Mounting options:Wall mounted or pedestal
HMI:Logo LED, Status LED
Load management:Plug&Play
General Design
Operating temperature ：-30 to 55°C with derating mechanisme
Operating altitude ：2500m
Environmental rating ：Indoor and outdoor, lP67,lK10
Dimension：260x80x80(mm)
Electrical Design Power supply:230VAC+20%,50/60Hz or
230/400VAC+20%,50/60HzTN/TT/T Protection:UVP, OVP, OCP, Relay Stuck, Over Temperature
Residual current protection：Type A + 6mA d&, per lEC 62955
Energy metering :±2% Accuracy
Certification & Standards
IEC/EN 61851-1, IEC/EN 62955, IEC 61851-21-2
EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2, EN 61000-3-3
EN 61000-3-11, EN 61000-3-12
EN 300 328 V2.1.1, EN 300 330 V2.1.1
▏ Technical Parameters
Maximum Power
7.4kw/32A 230VAC ; 11kw/16A 400VAC；22kW/32A 400VAC
Connector
Type 2/Type 1/GBT
Dimension (H*W*D)
260*80*80mm
Display
OLED 0.96″
Installation
Portable/Wall-mount
Certification
CE
Ingress Protection
IP67,IK10
Dynamic Load Blancing
Solar Charging
▏ Product Showcase
Long press the touch button to adjust the rated current of the charging station, ranging from 6A to 32A. Multiple levels can be matched to your grid usage for enhanced safety.
The timed charging function allows you to adjust the charging start time with a button, enabling charging during off-peak electricity rates for a more environmentally friendly approach.
AC30ma+DC6ma RCD swiftly detects abnormal currents, halting power supply to prevent electric shock incidents. Designed to international standards, our system ensures user safety and satisfaction.
▏ FAQ: Addressing Common Queries
1.Is there a portable charger for an Ev?
Yes, portable chargers for EVs do exist. They are compact devices that enable EV owners to charge their vehicles from standard electrical outlets. These chargers are convenient for home use and provide flexibility when traveling where charging stations are scarce.
2.Can I charge my EV with a portable power station?
Yes, you can charge your EV with a portable power station if it has the right output capacity and charging connectors compatible with your EV. Make sure it’s safe and meets your EV’s charging requirements.
3.ls there such a thing as a portable electric car Charger?
There are portable electric car chargers available. These chargers are designed to be compact and lightweight, allowing electric vehicle (EV) owners to charge their vehicles from standard electrical outlets wherever they have access to power. Portable EV chargers offer convenience and flexibility, making them suitable for home use or when traveling where dedicated charging stations may not be available. They typically come with various charging capacities and are compatible with different EV models, providing an alternative or supplementary charging option to fixed charging stations.
4.Are EV portable chargers compatible with all electric vehicles?
Most EV portable chargers are designed to be compatible with a wide range of EVs, but compatibility with specific models and connector types (e.g., Type 1, Type 2) should be verified before purchase.
5.How do I choose the right EV portable charger for my vehicle?
Consider factors such as power output, compatibility with your EV model, portability, and safety features (e.g., overcurrent protection, temperature monitoring) to ensure it meets your charging needs safely and efficiently.
