PAH-11+11/22+22kW Electric Vehicle Charger
AC Charger
- Electric Vehicle Charger
- OCPP1.6J+APP
- 2×Type 2/GBT
- RFID+NFC
- E-stop Button
- DLB
- IP54 IK10
▏ Description
The EV Charger 11+11/22+22kW PENODA Power Pulse PAH embodies a holistic approach to electric vehicle charging. From rapid charging and comprehensive compatibility to user-friendly features, safety measures, energy efficiency, and durability, this charging station addresses the needs of resellers while meeting the expectations of end-users. With its future-ready design, Eco-conscious features, and certifications, it’s a reliable and efficient solution for reselling energy to hotels, public parking areas, gas stations, and beyond. Embrace the electric revolution with a product that stands at the forefront of innovation and sustainability.
▏ Specification
Feature
Charging mode:PAH
Charging connector:lEC 62196 Type 2 cable
AC power output:Three phase up to 22kW with downgrade compatibility
Mounting options:Wall mounted or pedestal
HMI:Logo LED, Status LED
Load management:Via App
General Design
Operating temperature ：-30 to 55°C with derating mechanisme
Operating altitude ：2500m
Environmental rating ：Indoor and outdoor, lP55,lK10
Dimension：438*260*1330 mm
Weight:40 kg
Electrical Design
Maximum Power:
11kw/32A 400VAC±15%；22kW/64A 400VAC±15%
Protection:UVP, OVP, OCP, Relay Stuck, Over Temperature
Residual current protection：Type A + 6mA d&, per lEC 62955
Energy metering :±2% Accuracy
Communication
Interface:WiFi/4G/Ethernet
User authentication:RFID, App, Plug and Charge Backend protoco:OCPP 1.6 JSON Software upgrade:OTA via App, OCPP
▏ Technical Parameters
Maximum Power
11kw/32A 400VAC±15%；22kW/64A 400VAC±15%
Connector
Type 2/GBT
Dimension (H*W*D)
438*260*1330 mm
Display
LED 4.3″
Installation
Wall-mount
Certification
CE
Ingress Protection
IP55,IK10
Dynamic Load Blancing
Solar Charging

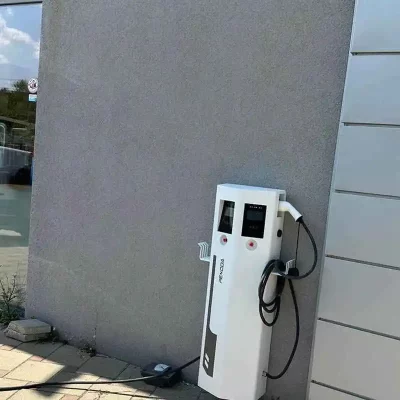

▏ Product Showcase
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and dual 11/22kW outputs, our charging station offers a seamless EV charging experience.
Safety Instructions for Charging Stations
Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
▏ FAQ: Addressing Common Queries
1.How long does it take to charge an electric vehicle?
The time it takes to charge an electric vehicle (EV) depends on several factors, including the type of charger, the battery capacity of the EV, the state of charge (SOC) of the battery, and the efficiency of the charging process.
2.How much does it cost to charge an electric vehicle?
The cost to charge an electric vehicle (EV) varies widely based on several factors including electricity rates, the size of the vehicle’s battery, the type of charger used, and where the charging takes place.
3.Cost to install electric vehicle charging station?
The cost to install an EV charging station depends on the type of charger, location, and specific installation needs. While residential installations are generally more affordable, commercial and public installations can be significantly more expensive due to higher power requirements and additional infrastructure needs. Proper planning and consultation with professional installers can help manage costs and ensure a successful installation.
4.How much does a commercial electric vehicle charging station cost?
The total cost for a commercial EV charging station varies based on the type of charger, location, and specific site requirements. For a basic Level 2 charging station, expect to spend between $2,400 and $12,000 per charger. For DC fast chargers, costs can range from $30,000 to $150,000 or more per charger. Proper planning and consultation with professional installers and local utilities can help manage these costs and ensure a successful deployment.
