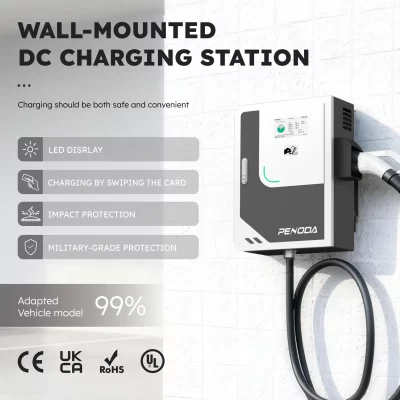

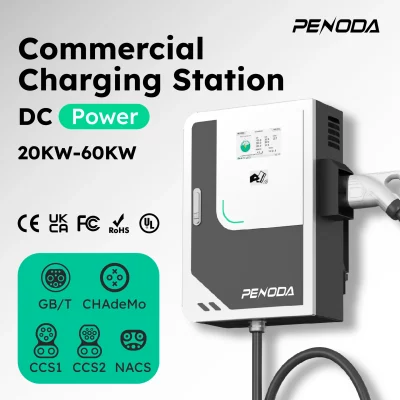

PDA-20/30/40kW Commercial EV Charger
DC Charger
- Commercial EV Charger
- OCPP1.6J+APP+4G+WIFI+LAN Port
- CCS2/CCS1/GBT
- Dynamic Load Balancing
- RFID+NFC
- 4G/WIFI/LAN Port
- IP55 IK10
- E-stop button
- European Standard (CE)
- Top DC AC EV Charger Factory
▏ Description
Launch your EV charging business with PENODA’s PDA-20/30/40kW Commercial EV Charger. Designed for commercial use, our chargers provide reliable, efficient, and fast charging solutions. As a leading EV charger manufacturer, we ensure our equipment meets the highest standards of safety and performance.
Key Features:
Commercial Excellence: Our chargers are perfect for businesses, public charging stations, and fleet operations, providing fast and dependable charging services.Power Options: The PDA series comes in 20kW, 30kW, and 40kW models, allowing you to choose the power level that best suits your needs.Durability and Safety: Each charger undergoes rigorous testing to ensure safety and longevity, making them ideal for high-usage environments.Efficiency: Advanced technology ensures efficient energy use and quick charging times, minimizing downtime for EV users.Scalability: Our commercial chargers are designed to scale with your business, making it easy to expand your charging infrastructure as demand grows..
▏ Specification
Feature
Charging mode:PDA
Charging connector:lEC 62196 CCS 2 cable
DC power output:20KW/30KW/40KW
Mounting options:Wall mounted or pedestal
HMI:Logo LED, Status LED
Load management:Via App
General Design
Operating temperature ：-30 to 55°C with derating mechanisme
Operating altitude ：2500m
Environmental rating ：Indoor and outdoor, lP55,lK10
Dimension：650*450*150mm
Weight:65kg
Electrical Design Power supply:230/400VAC ± 20%, 50/60Hz
TN/TT/IT
Protection:UVP, OVP, OCP, Relay Stuck, Over Temperature
Energy metering :±2% Accuracy
Communication
Interface:WiFi/4G/Ethernet
User authentication:RFID, App, Plug and Charge Backend protoco:OCPP 1.6 JSON upgrade:OTA via App, OCPP
▏ Technical Parameters
DC EV Charger Usage Locations
- Public Charging Stations
- Shopping Malls and Retail Areas
- Workplaces and Office Complexes
- Rest Stops and Highway Service Areas
- Residential Areas
- Commercial Fleets and Logistics Centers
- EV Charging Hubs
- Hotels and Tourist Destinations
- Public Parking Lots and Garages
- Car Dealerships and Showrooms
Maximum Power
20kw/42A 400VAC±15%；30kW/60A 400VAC±15%;40kW/80A 400VAC±15%
Connector
CCS1/CCS2/GBT
Dimension (H*W*D)
650*450*150mm
Display
LED 7″
Installation
Wall-mount
Certification
CE
Ingress Protection
IP55,IK10
Dynamic Load Blancing
Solar Charging
▏ Product Showcase
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and dual 22kw outputs, our charging station offers a seamless EV charging experience.

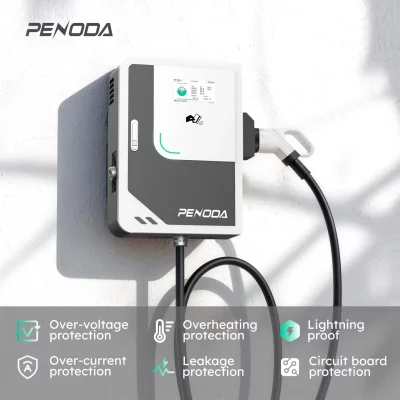

Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
Key Features of PENODA 20kW/30kW/40kW DC EV Charger:
1.Fast Charging: PENODA’s 20kW/30kW/40kW DC chargers provide quick charging for compatible electric vehicles, significantly reducing waiting times compared to standard AC chargers.
2.Efficient Power Delivery: Delivers 20kW/30kW/40kW of DC power, offering high charging efficiency and minimizing energy loss, ensuring optimal performance.
3.Wide Compatibility: Works with various electric vehicles that support DC fast charging, featuring multiple connectors for added flexibility, making it suitable for a wide range of EVs.
4.User-Friendly Interface: Equipped with a clear, intuitive display, PENODA’s chargers allow users to easily monitor charging status, power output, and fault diagnostics.
5.Safety and Reliability: Built with multiple safety features, including overcurrent protection, short-circuit protection, and surge protection, ensuring both the vehicle and charger remain safe during use.
6.Durable Construction: Designed for outdoor installation with a weatherproof enclosure, ensuring reliable operation in all environmental conditions.
7.Smart Connectivity: Integrated with advanced software for remote monitoring, fault detection, and firmware updates, offering enhanced functionality for both users and service providers.
PENODA’s Investment in Advanced Manufacturing Technology:
PENODA is committed to leading the industry by continually investing in advanced manufacturing technologies. The company has introduced large-scale automated production lines, pneumatic punching machines, HRT high-speed hydraulic turret-type punching presses, automatic welding robots, and German Trumpf high-power fiber laser cutting machines, significantly improving production efficiency and product precision. These advanced machines can efficiently process both copper and aluminum plates, ensuring that PENODA’s EV chargers maintain high quality, reliability, and superior performance.
Safety and Protection Features:
PENODA places a strong emphasis on safety and has equipped its EV chargers with multiple protective features to ensure the safety of both users and the equipment. We provide five start-up cards, which allow users to authorize and control the charging station access, preventing unauthorized use and ensuring secure management. Additionally, the chargers are equipped with an emergency stop button, which allows users to quickly cut off power in case of emergencies, ensuring both personal and equipment safety.
Durable Design with High-Impact Protection:
PENODA’s chargers are built with a robust metal housing, designed for durability and resilience in outdoor environments. The housing is highly impact-resistant, dustproof, and waterproof, capable of withstanding extreme weather conditions such as rain, snow, dust, and high temperatures. Our chargers’ enclosures undergo strict testing to prevent aging and ensure reliable long-term operation.
Smart Monitoring and Remote Management:
PENODA’s EV chargers are equipped with advanced smart monitoring systems that allow real-time tracking of charging status, fault diagnostics, and energy consumption analysis. Through a dedicated management platform, both users and service providers can remotely perform fault detection, maintenance, and firmware updates, improving management efficiency and service quality.
Environmental Friendliness and Sustainability:
As a company with a strong environmental consciousness, PENODA emphasizes the sustainability of its products. Our chargers are made from eco-friendly materials, and their design focuses on energy efficiency, ensuring that they meet industry standards while also contributing to reducing carbon footprints. Moreover, our chargers are compatible with renewable energy sources like solar power, supporting green transportation and environmental protection initiatives.
▏ FAQ: Addressing Common Queries
1.What power does a commercial EV charger need?
Level 2 Chargers: About 7.2 kW to 19.2 kW, suitable for workplaces and public areas where vehicles are parked for longer durations.DC Fast Chargers (Level 3): Usually between 50 kW to 350 kW, used in locations needing quick charging, like highway stops and busy urban areas.Ultra-Fast Chargers: 350 kW and higher, for cutting-edge applications and high-traffic areas.
2.How much profit does a commercial EV charging station make?
The profitability of a commercial EV charging station can vary widely depending on several factors, including location, pricing strategy, utilization rates, operational costs, and local regulations.Given these variables, it’s challenging to provide a specific profit figure as it can vary greatly. Successful charging station operators often conduct thorough market analysis, manage operational efficiency, and adapt to evolving EV adoption and regulatory landscapes to optimize profitability.
3.What types of commercial EV chargers are available?
Commercial EV chargers include Level 2 chargers, which range from 7.2 kW to 19.2 kW and are suitable for longer parking durations, and Level 3 chargers (DC fast chargers), starting at 50 kW and going up to 350 kW or higher for rapid charging needs.
4.What are the installation requirements for a commercial EV charger?
Installation requirements include sufficient electrical capacity, compliance with local regulations and building codes, access to parking spaces for EV users, and possibly upgrades to the electrical infrastructure to support the charger’s power demands.
5.What are the benefits of installing a commercial EV charger?
Installing a commercial EV charger can attract EV-driving customers, enhance property value, support sustainability goals, and provide an additional revenue stream through charging fees or increased customer foot traffic.
