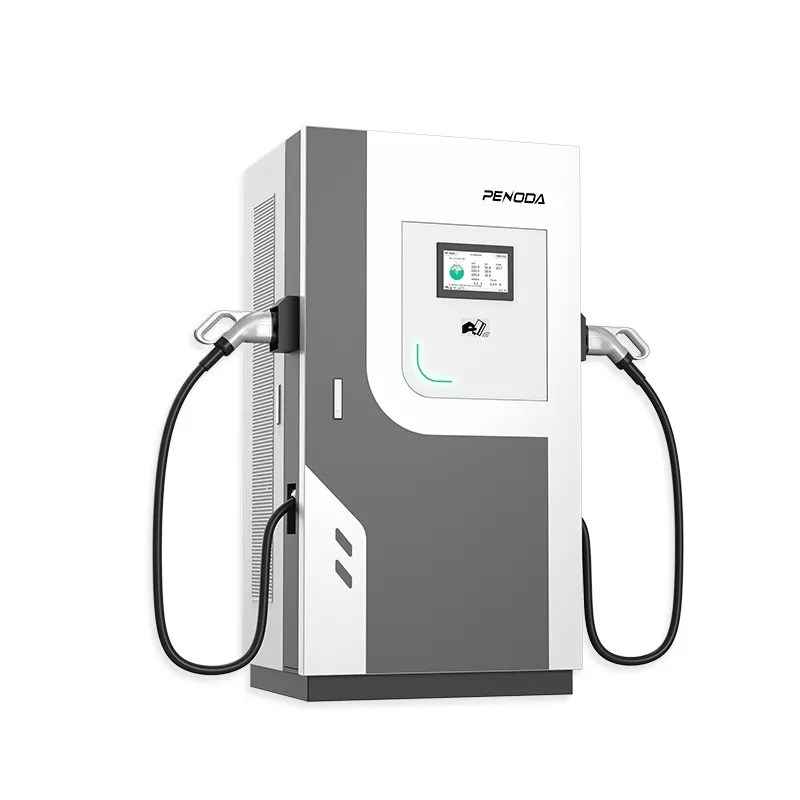

PDBT-DC 60+AC 22kW Commercial Electric Vehicle Charging Station
DC + AC Charger
- Commercial Electric Vehicle Charging Station
- OCPP1.6J+APP
- TYPE2+CCS2/CCS1/GBT
- Dynamic Load Balancing
- RFID+NFC
- 4G/WIFI/LAN Port
- Credit Card Payment
- fast charge
- IP55 IK10
- E-stop button
▏ Description
The PDBT-DC 60+AC 22kW Commercial Electric Vehicle Charging Station is a versatile and robust solution designed to meet the charging needs of electric vehicles (EVs) in commercial settings. It combines rapid DC fast charging with versatile AC charging capabilities, catering to the diverse needs of commercial EV charging infrastructure. This dual functionality allows flexibility in charging different types of EVs simultaneously, providing efficient charging options for both quick stops and longer parking durations. The station supports a wide range of electric vehicles equipped with different charging standards like CCS and CHAdeMO, ensuring compatibility with various EV models. Designed for ease of use and durability, it integrates seamlessly into existing electrical infrastructure at locations such as workplaces, public areas, and retail centers, contributing to sustainability efforts and potentially generating revenue through charging fees.
▏ Specification
Feature
Charging mode:PDBT
Charging connector:lEC 62196 CCS2+ Type 2 cable
Power output:DC 60kw + AC 22kw
Mounting options:pedestal
HMI:Logo LED, Status LED
Load management:Via App
General Design
Operating temperature ：-30 to 55°C with derating mechanisme
Operating altitude ：2500m
Environmental rating ：Indoor and outdoor, lP55,lK10
Dimension：700x425x1500 mm
Electrical Design Power supply:
400VAC+20%,50/60HzTN/TT/T Protection:UVP, OVP, OCP, Relay Stuck, Over Temperature
Energy metering :±2% Accuracy
Communication
Interface:WiFi/4G/Ethernet
User authentication:RFID, App, Plug and Charge
protoco:OCPP 1.6 JSON upgrade:OTA via App, OCPP
▏ Technical Parameters
Maximum Power
DC:60KW AC:22KW/192A 400VAC±15%
Connector
CCS1/CCS2/GBT
Dimension (H*W*D)
700x425x1500 mm
Display
LED 10.1″ touch
Installation
Floor-Standing
Certification
CE
Ingress Protection
IP55,IK10
Dynamic Load Blancing
Solar Charging
▏ Product Showcase
Featuring card payment, APP control, OCPP 1.6 compatibility, WiFi/4G/Ethernet connectivity, and dual DC 60+AC 22kW outputs, our charging station offers a seamless EV charging experience.
Equipped with leakage, overvoltage, overtemperature, lightning, and waterproof protections, our charging stations ensure safe, reliable charging for your EV. Use with confidence.
▏ FAQ: Addressing Common Queries
1.How do I choose the right Commercial Electric Vehicle Charging Station?
You can choose a commercial EV charging station that meets your operational needs, supports sustainability goals, and enhances the value of your business or property. Consulting with EV charging experts or providers can also provide valuable insights and assistance in selecting the right solution.
2.What types of chargers are available at commercial EV charging stations?
Commercial EV charging stations may offer Level 2 chargers, which provide moderate charging speeds suitable for longer parking durations, and DC fast chargers (Level 3), which offer rapid charging for quick stops. DC fast chargers typically range from 50 kW to 350 kW or higher.
3.What is a commercial electric vehicle charging station?
A commercial EV charging station is a dedicated facility equipped with chargers designed to recharge electric vehicles. It is typically located in public areas, workplaces, or commercial properties.
4.What are the trends in commercial EV charging stations?
Trends include advancements in charger technology to support higher power outputs and faster charging times, integration of smart features for user convenience, and expansion of charging networks to improve accessibility and coverage.
5.What safety certifications does the EV Charger station comply with?
The charger adheres to stringent industry standards and certifications, including CE, IEC, and EN certifications such as IEC 61851-1, DIN 70121, ISO 15118, SAE J1772 和IEC 61851-23., ensuring reliable and safe operation.
